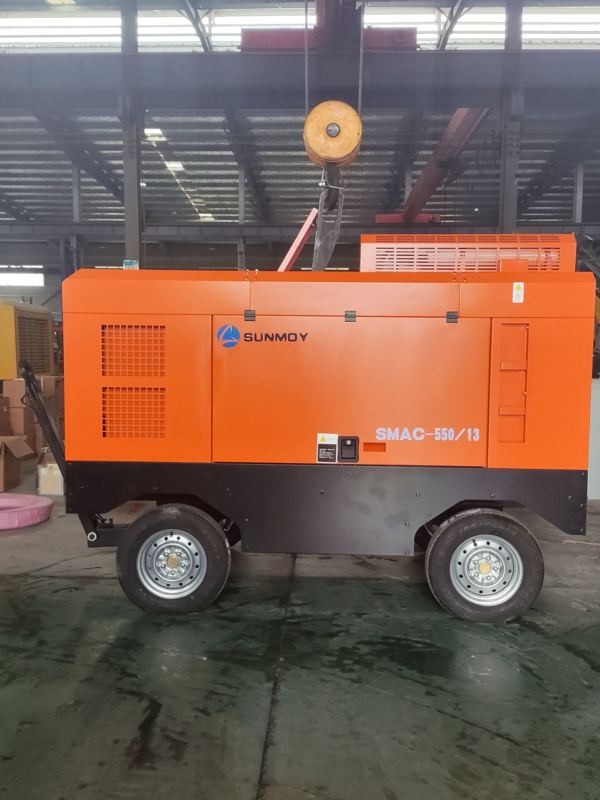

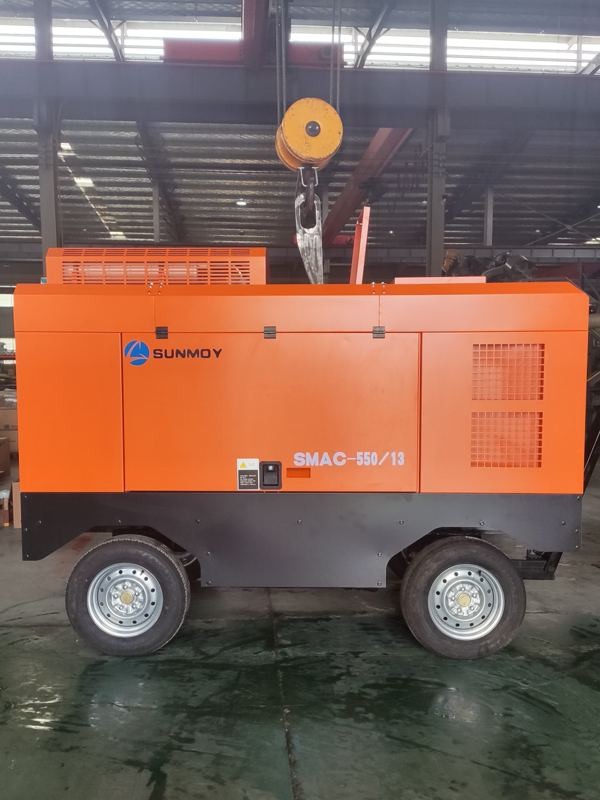

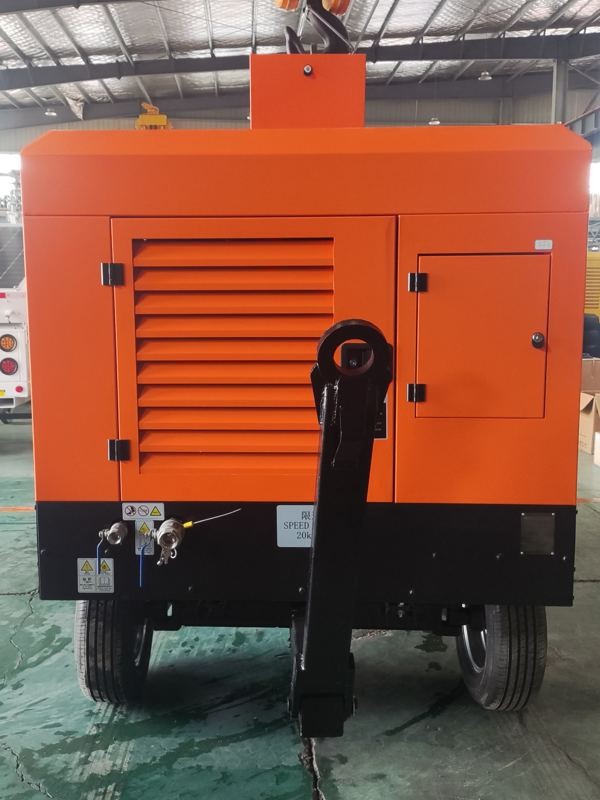

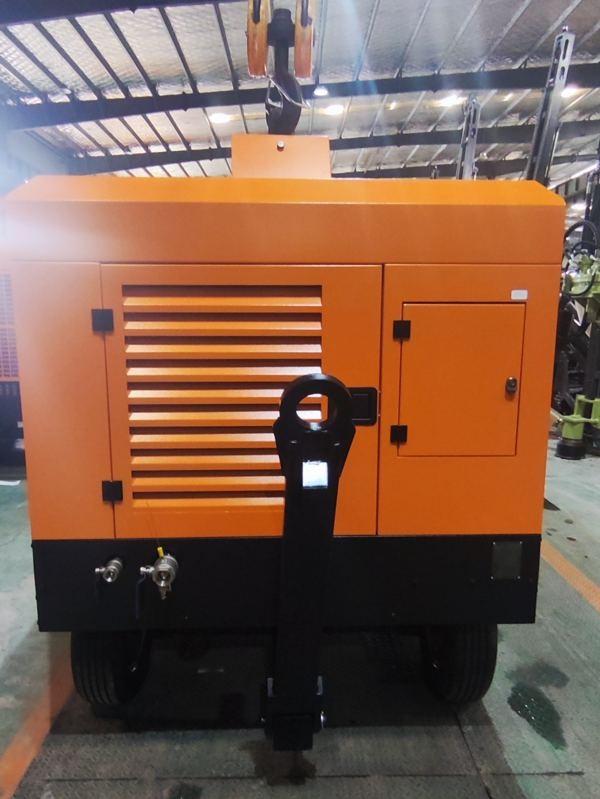

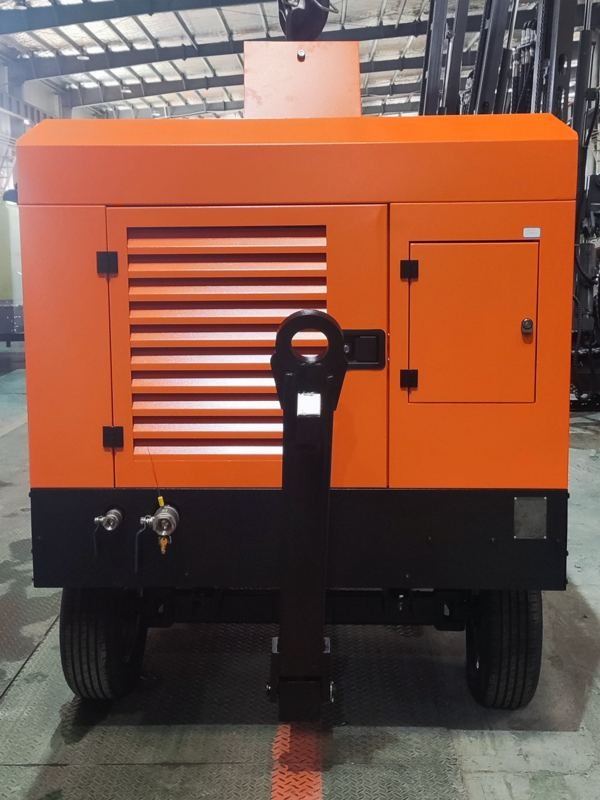

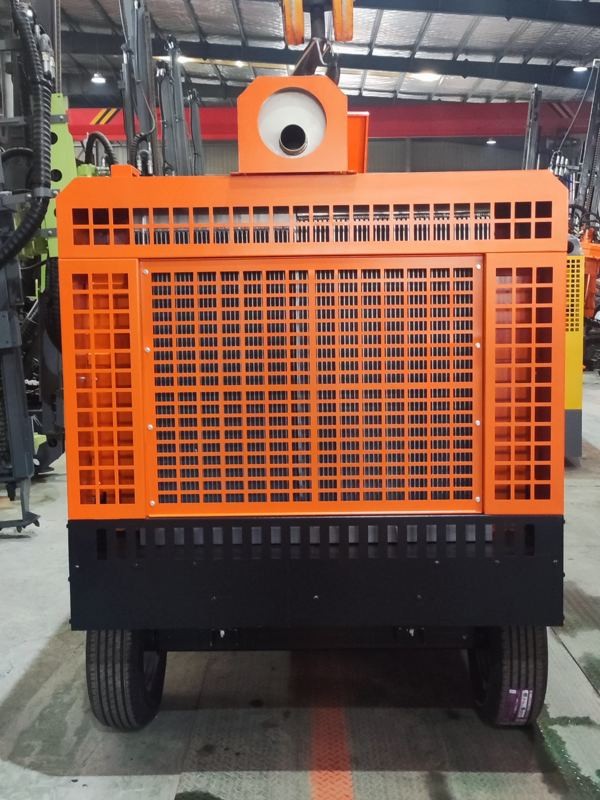

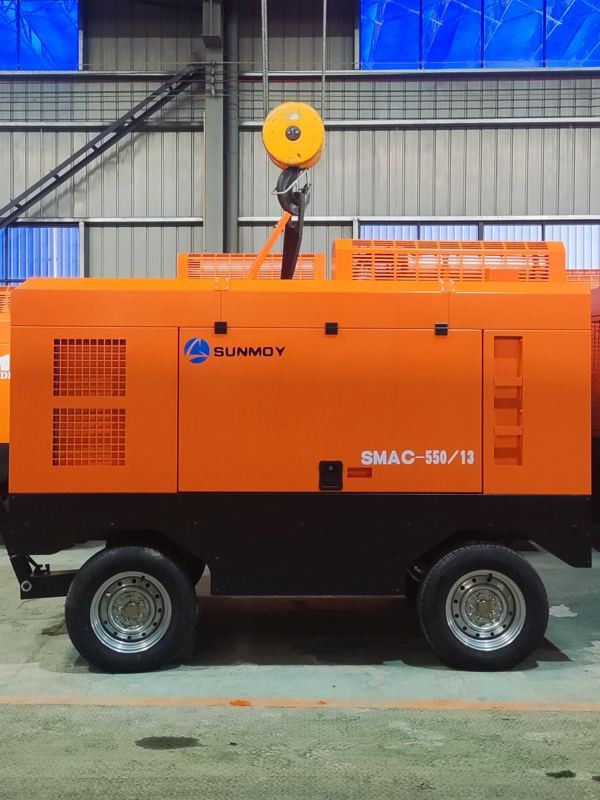

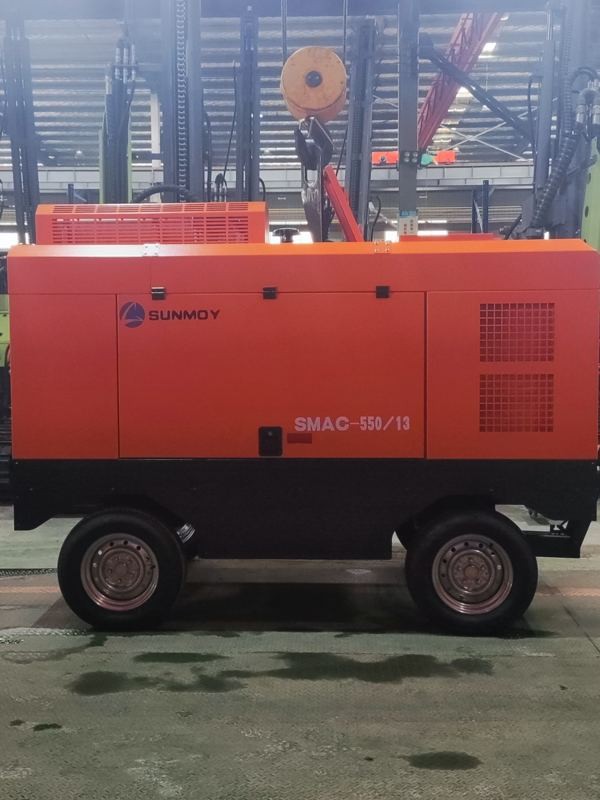

Screw Air Compressor

1.Cummins or Yuchai high-quality brands diesel engine supporting:
2.Heavy-load engine head design, excellent performance, energy efficiency upgrade;
3.Integrated two-in-one function to solve the low temperature starting difficulty of conventional inlet valve and the failure of piston seal;
4.With the Fleetguard air filtration system, the double filter element ensures that the compressor takes in cleaner air
5. High temperature resistant design, suitable for severe high temperature weather;
6.Automatic control and protection system.

Model	SMAC550-13	SMAC550-15	SMAC18-18
Screw air compressor
Layout	Screw type Single -Stage compression Oil cooling type	Screw type Single -Stage compression Oil cooling type	Screw type Single -Stage compression Oil cooling type
Free air Deliver (m³/min)	15	15	18
Discharge Pressure (bar)	13	15	18
Drive Way	Diesel Driven	Diesel Driven	Diesel Driven
Oil and Gas Tank Capacity (L)	100	100	100
Lubricating Oil Capacity（L）	48	48	48
Air Filter	FleetGuard	FleetGuard	FleetGuard
Air Compressor Head	Baosi Brand	Baosi Brand	Baosi Brand
Diesel Engine
Manufacturer	CUMMINS	CUMMINS	CUMMINS
Model	6BTA5.9-C180-II	6BTA5.9-C180-II	QSB5.9-C220-31
Rated Speed/ Full Load/ Idling (rpm)	2200/2000/1420	2200/1900/1420	2200/1950/1450
Rated Power (KW)	132	132	157
Cylinders/Cylinder Dia./ Piston Stroke	6×102×120	6×102×120	6×102×120
Output Volume (L)	5.9	5.9	5.9
Coolant Capacity (L)	20	20	20
Engine Oil Capacity (L)	17	17	17
Fuel Tank Capacity (L)	210	210	210
Air Filter	FleetGuard	FleetGuard	FleetGuard
Oil Filter	WD13145	WD13145	WD13145
Battery	6QW-165MF	6QW-165MF	6QW-165MF
Coupling	High Elastic	High Elastic	High Elastic
Walking Speed (Km/h)	0-20	0-20	0-20
Size and Weight
Length (mm)	3050 (2805 not included traction)	3050 (2805 not included traction)	3282 (2780 not included traction)
Width (mm)	1525	1525	1605
Height (mm)	2182	2182	2252
N.W (Kg)	2500	2500	2500
Exhaust Valve	G1"x1&G11/2"x1	G1"x1&G11/2"x1	G1"x1&G11/2"x1
OFFER
40HC/HQ Recommend QTY	4	4	4
1 Optional parts	none	none	none
2 Optional parts	Aftercooling	Aftercooling	none
3 Optional parts	Top Mounted Desert Air Filter	Top Mounted Desert Air Filter	Top Mounted Desert Air Filter
4 Optional parts	Diesel engine water circulation heating system	Diesel engine water circulation heating system	Diesel engine water circulation heating system
5 Optional parts	Remote Control	Remote Control	Remote Control
