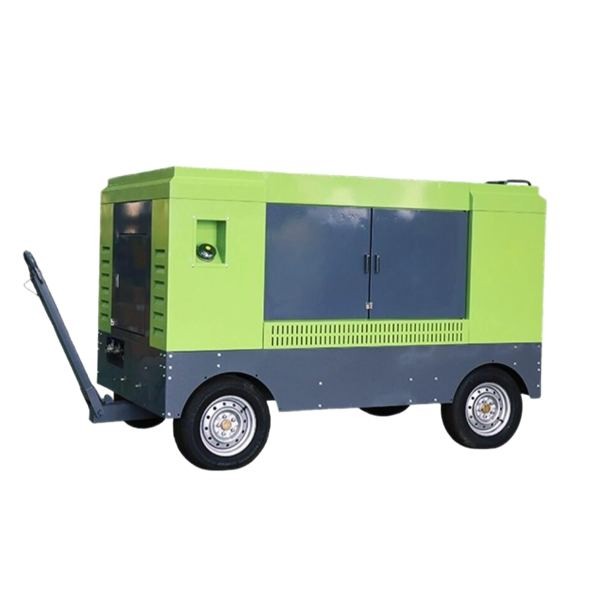

SUNMOY diesel screw air compressors are professionally built for all drilling rigs. Suitable for water well, borehole and mining drilling, they deliver stable high-pressure airflow, featuring low fuel consumption, durable heavy-duty structure and intelligent control for harsh outdoor construction sites.
| Equipment Model | SMAC-31/25 |
| Equipment Type | Screw Air Compressor |
| Structure Type | Two-stage Screw Compression, Oil-cooled Type |
| Free Air Delivery | 31 m³/min |
| Discharge Pressure | 25 bar |
| Drive Method | Diesel Driven |
| Oil and Gas Tank Capacity | 220 L |
| Lubricating Oil Capacity | 120 L |
| Air Filter Brand | FleetGuard |
| Air Compressor Head Brand | Baosi |
| Supporting Diesel Engine Manufacturer | CUMMINS |
| Engine Model | QSL8.9-C360-31 |
| Engine Speed Specifications | Rated Speed 2200 rpm, Full Load Speed 1800 rpm, Idle Speed 1450 rpm |
| Engine Rated Power | 294 kW |
| Engine Cylinder Specifications | 6 Cylinders, Cylinder Diameter 118 mm, Piston Stroke 145 mm |
| Engine Displacement | 8.9 L |
| Engine Coolant Capacity | 65.8 L |
| Engine Oil Capacity | 28 L |
| Fuel Tank Capacity | 450 L |
| Oil Filter Model | P165705 |
| Battery Model | 6QW-220MF |
| Coupling Type | High Elastic Coupling |
| Equipment Travel Speed | 0-20 km/h |
| Overall Length | 3500 mm |
| Overall Width | 1980 mm |
| Overall Height | 2260 mm |
| Net Weight | 4200 kg |
| Air Outlet Interface Specification | 1 × G2" Port, 1 × G1 1/2" Port |
| Recommended Loading Quantity for 40HC/HQ Container | 3 Units |
| Optional Accessory 1 | None |
| Optional Accessory 2 | None |
| Optional Accessory 3 | Top Mounted Desert Air Filter |
| Optional Accessory 4 | Diesel Engine Water Circulation Heating System |
| Optional Accessory 5 | Remote Control |
