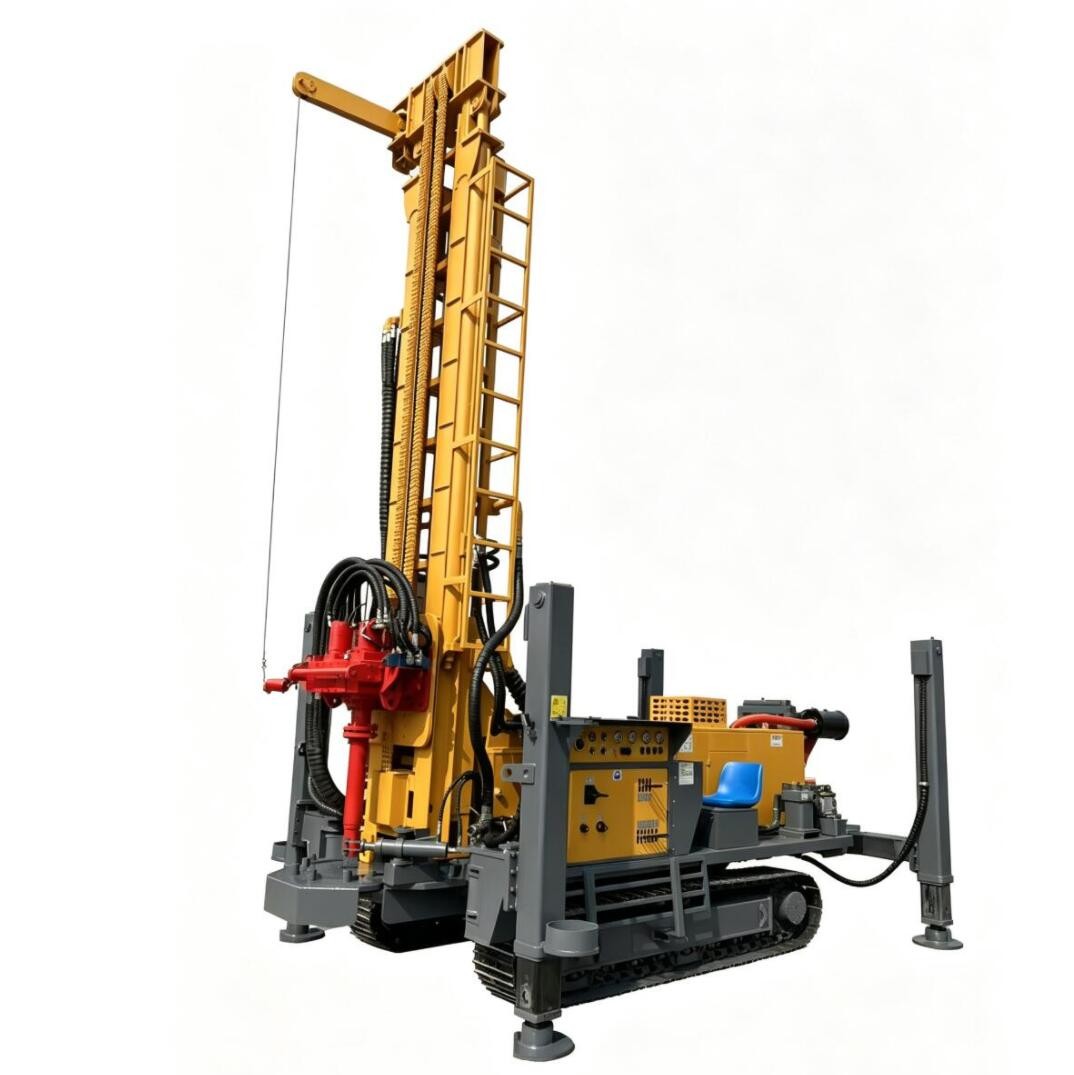

SM400D crawler drilling rig
Model | SM400D |
Tower | 3/6m |
Chassis | Steel track |
Drilling Diameter | 130-325mm |
Drilling Depth | 400m |
One-Time Advancement Length | 3.6/6.6m |
Walking Speed | 2.5km/h |
Maximum Gradeability | 30 |
Engine Brand | Yuchai |
Engine Power | 92/110kw |
Working Pressure | 1.7-3.5mpa |
Air Consumption | 17-35 m³/min |
Drill Pipe Diameter | 102/108/114mm |
Drill Pipe Length | 3.0/6.0m |
Lifting Power | 25T |
Swing Speed | 45-115rpm |
Rotating Torque | 7000-9000 N.m |
Dimensions | 5400*2200*2870mm |
Weight | 7/9T |
