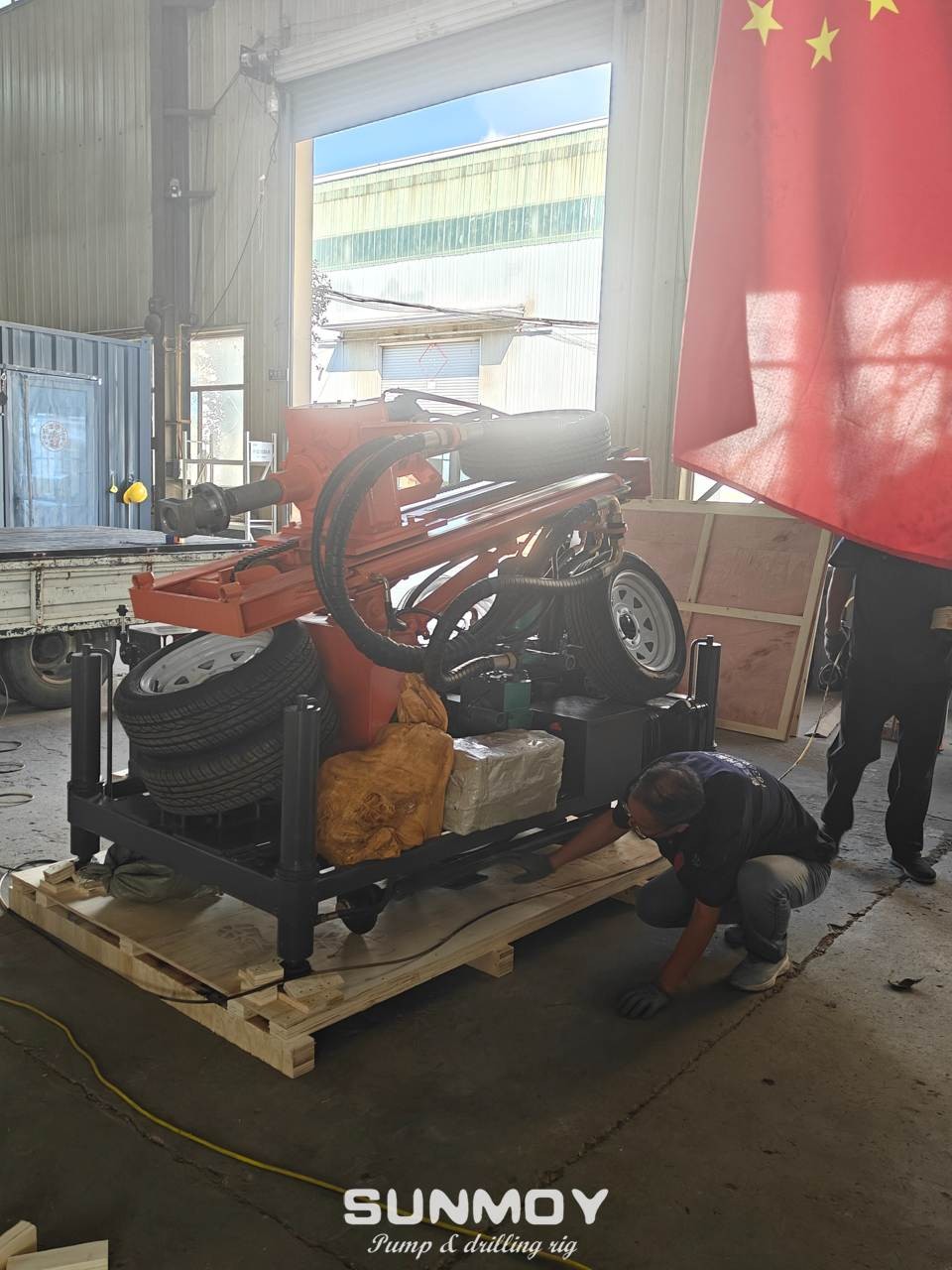

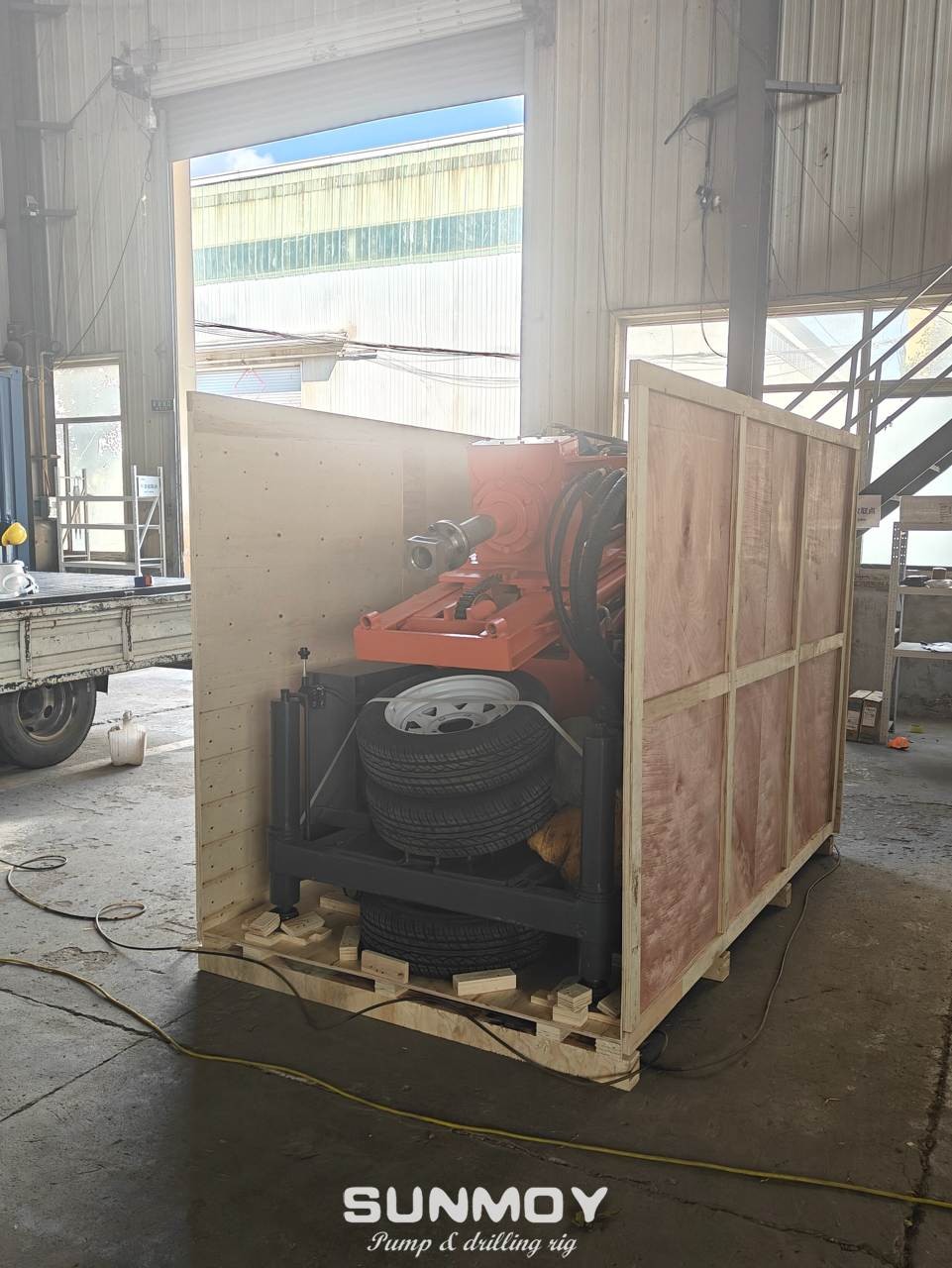

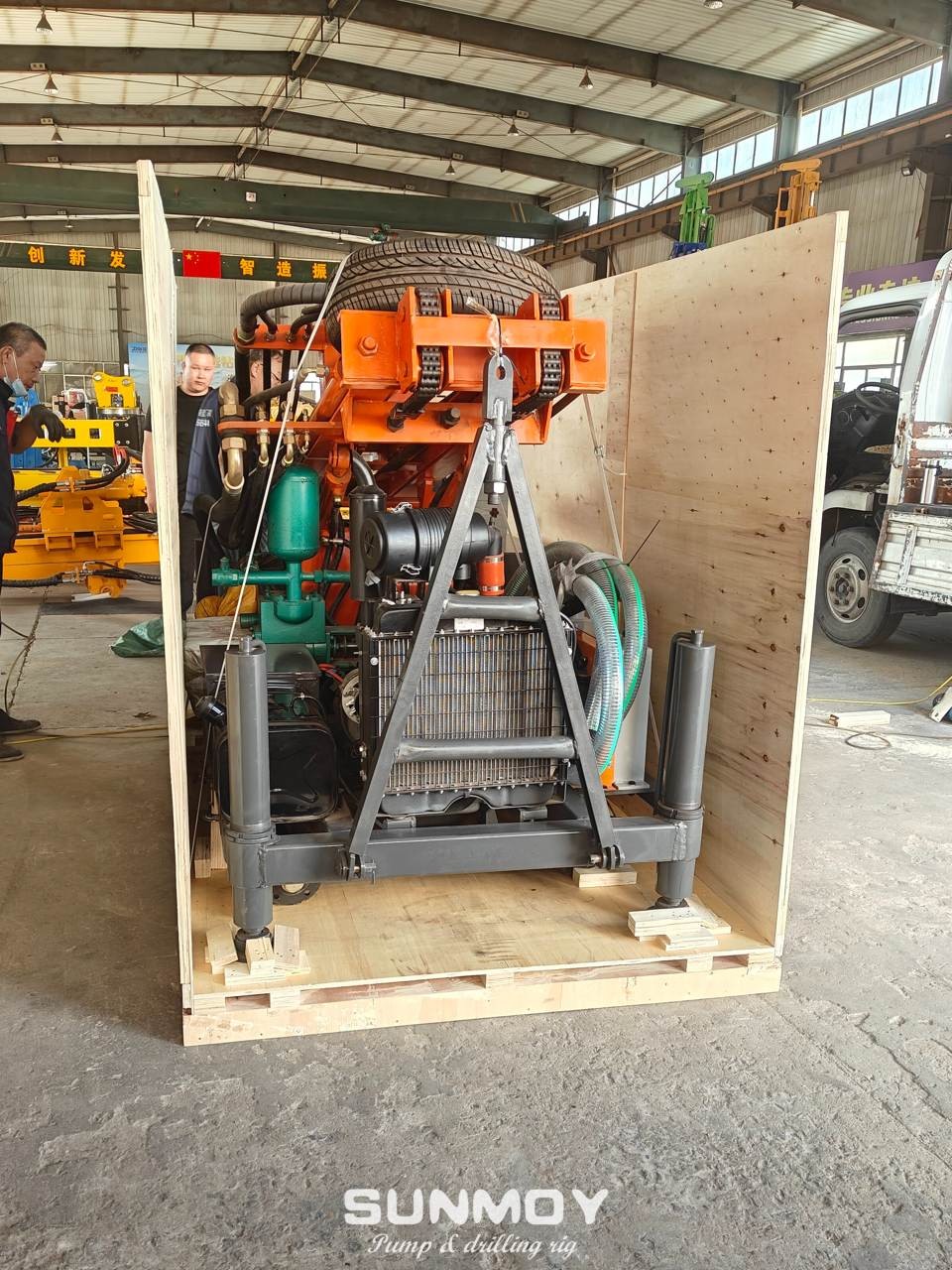

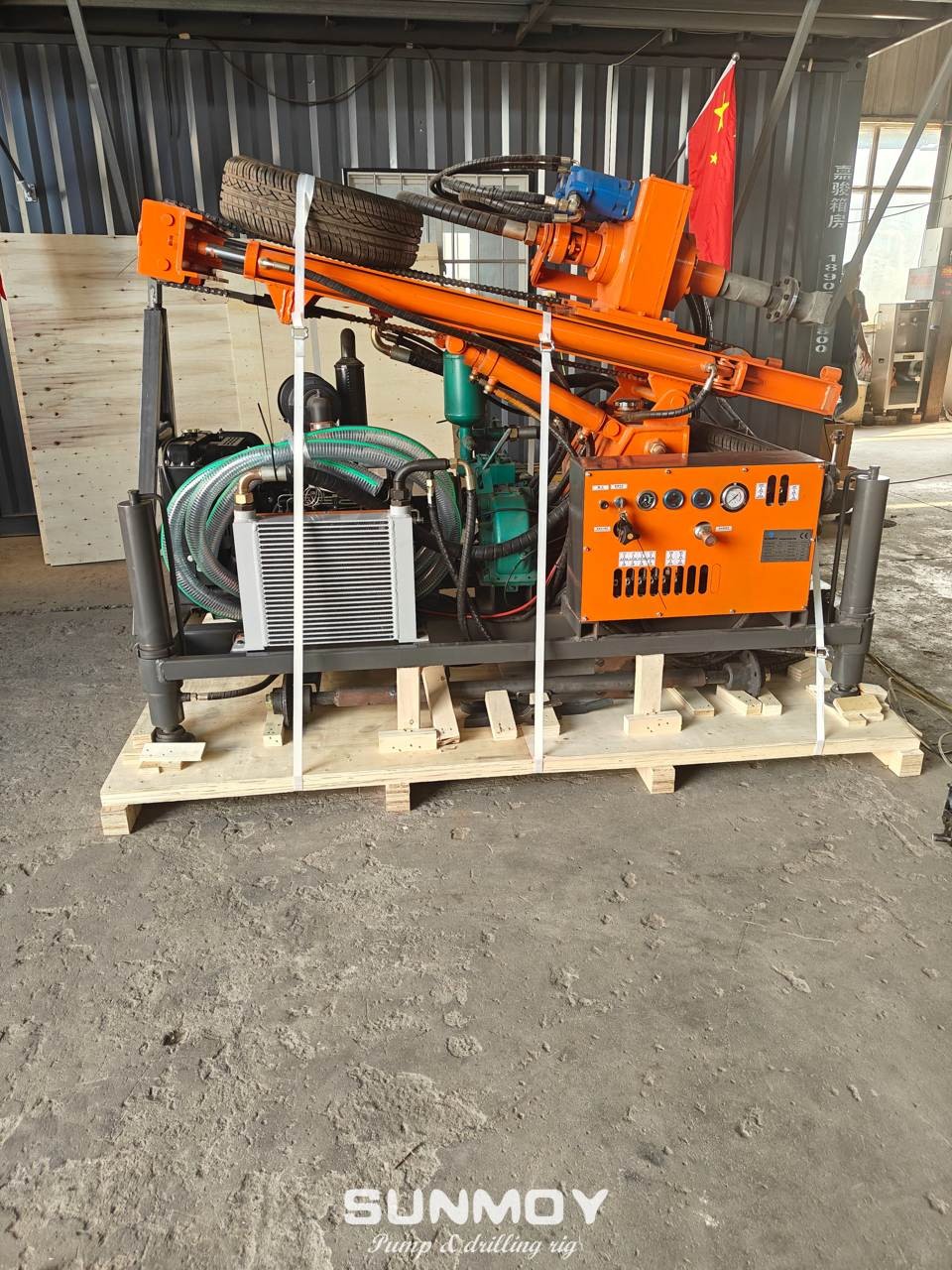

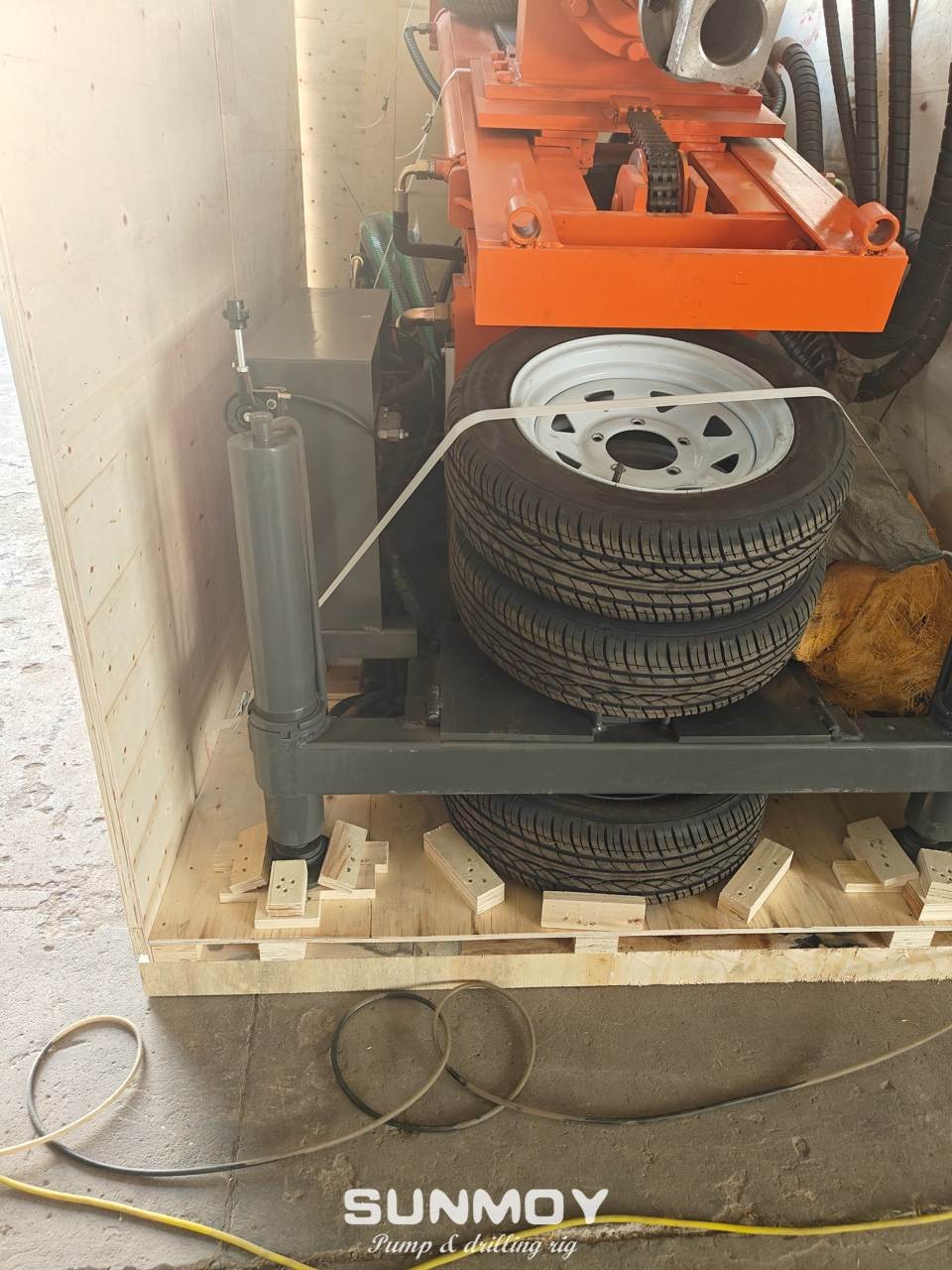

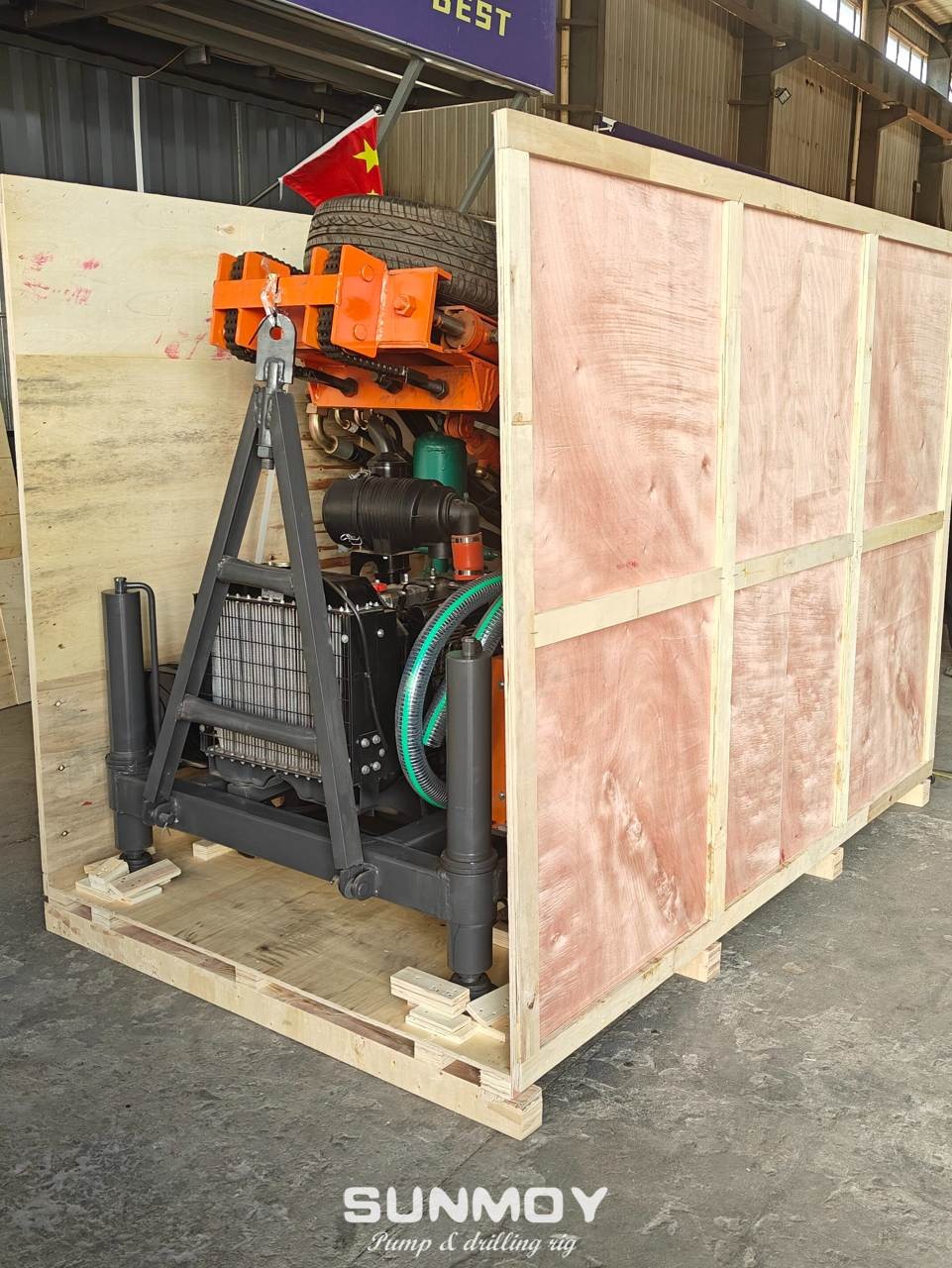

SM150D

Pneumatic   drill rig

45KW   diesel engine Torque: 4000 to 5000 rpm

Speed:   80 to 200 rpm Maximum well depth: 230 meters

Maximum   well diameter: 76- 400 mm

Lifting   force: 16 tons Drill rod: 60/76/89 mm Drill rod: 2 meters

Maximum stroke: 2.4 meters

The   BW160 mud pump is embedded in the drilling rig

structure.

1

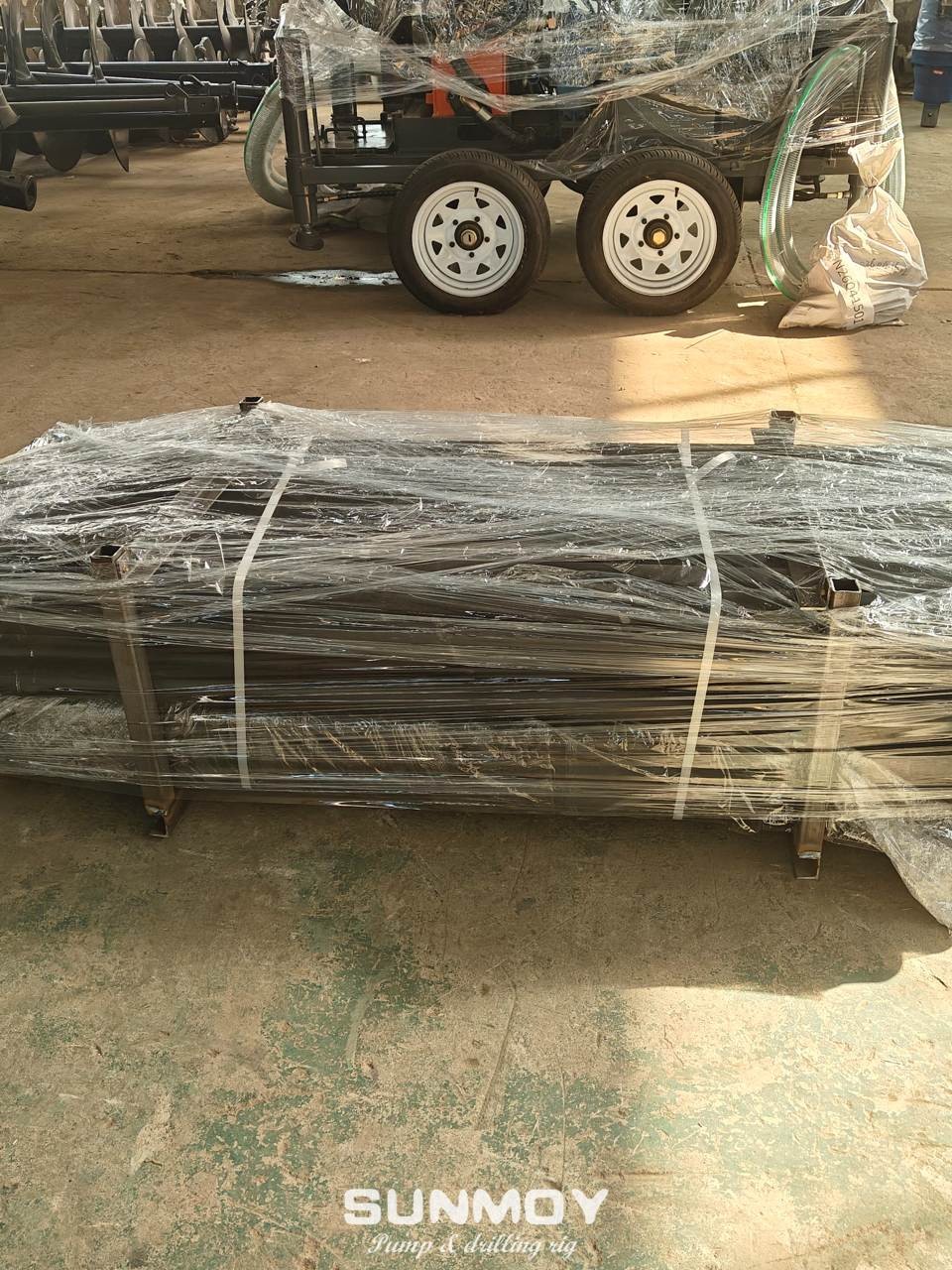

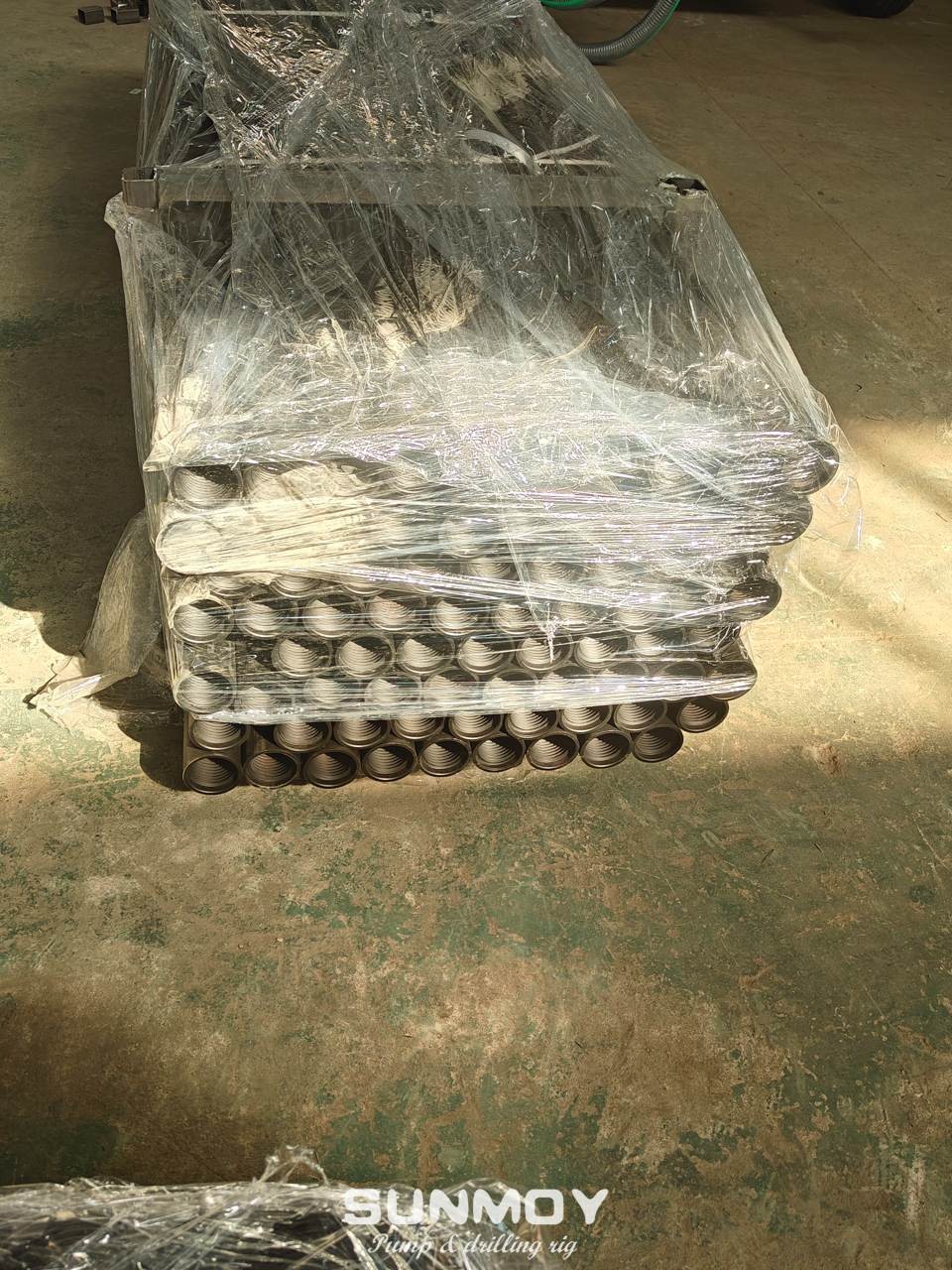

drill pipe

60mm*2m

75

Alloy   drill bit for soil &Sandy soil & clay

150Mm

2

PDC   drill bit for rock

150mm

2

water pipe

/

1

Platform fork

/

1
