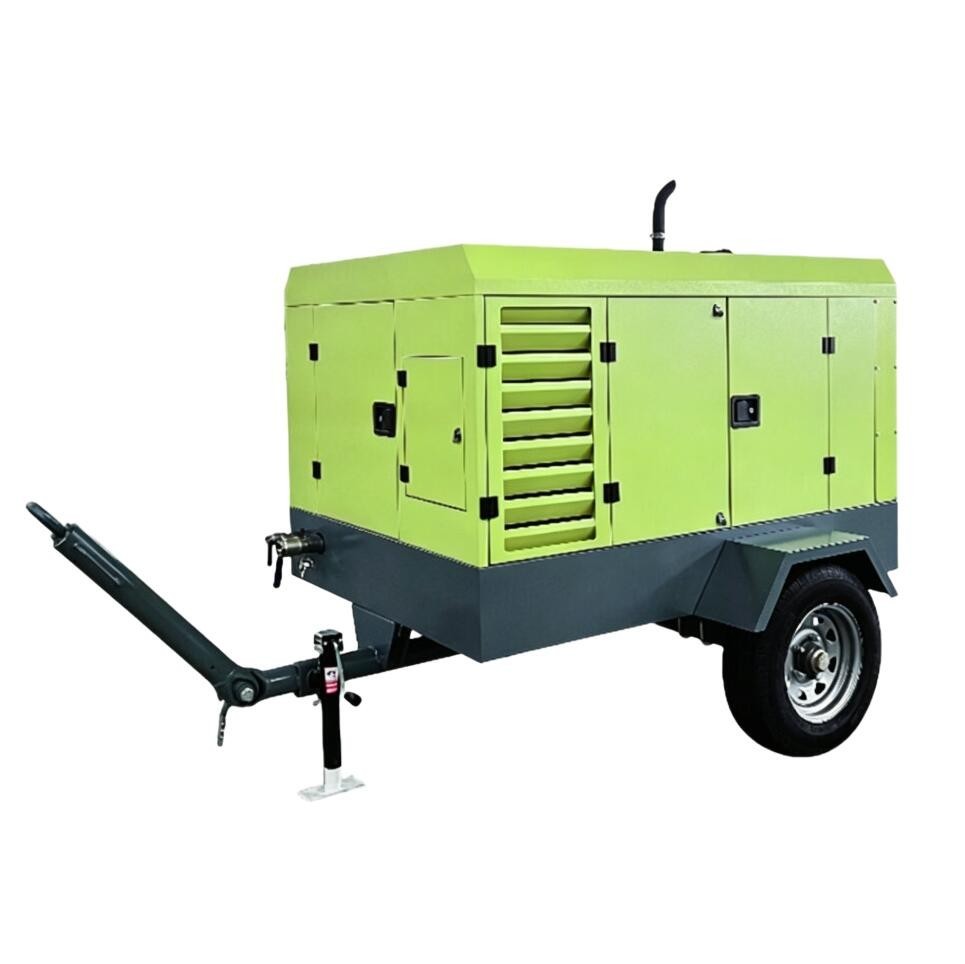

SMAC-7/8 Diesel Screw Air Compressor

SUNMOY diesel screw air compressors are professionally built for all drilling rigs. Suitable for water well, borehole and mining drilling, they deliver stable high-pressure airflow, featuring low fuel consumption, durable heavy-duty structure and intelligent control for harsh outdoor construction sites.

Item	Parameter
Model	SMAC-7/8
Compressor	Screw air compressor
Layout	Screw type Single-Stage compression Oil cooling type
Free air Delivery, m³/min	7
Discharge Pressure, bar	8
Drive Way	Diesel Driven
Oil and Gas Tank Capacity, L	100
Lubricating Oil Capacity, L	48
Air Filter	FleetGuard
Air Compressor Head	Baosi Brand
Diesel Engine	YuChai
Manufacturer	YuChai
Model	YCD4T12T
Rated Speed / Full Load / Idling, rpm	2400/2200/1450
Rated Power, kW	55
Cylinders / Cylinder Dia. / Piston Stroke	4×102×118
Output Volume, L	3.85
Coolant Capacity, L	20
Engine Oil Capacity, L	10.5
Fuel Tank Capacity, L	90
Air Filter	FleetGuard
Oil Filter	WD1374
Battery	6-QW-80
Coupling	Marine Using / High Elastic
Walking Speed, Km/h	0-20
Size and Weight
Length, mm	3116 (1950 Not included Traction)
Width, mm	1806
Height, mm	1887
Net Weight, Kg	1650
Exhaust Valve	G1"×1 & G1½"×1
