FSC4-5&9 Solar water pump

Solar-powered water pumps use the sun to generate power and efficiently move water from a well, storage tank, pond or other water sources to the desired location. They work well for irrigation, livestock, bird baths, and off-grid applications, and are an excellent alternative to traditional water pumps.


Profile:

Adopt stainless steel screw and rubber stator, permanent Magnet Brushless motor. With combination of motor and controller, the max efficiency is over 85%, raises 25% than the traditional AC pump.

2. Material:

1) Stainless steel casing, shaft core, coupling and pump body; copper alloy connecting, base; rubber stator of high-strength and wear-resistant.

2) Oil immersion style stainless steel submersible motor.

Product Feature:

1) Compact structure, high-lift, noiseless, pollution-free; complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, overload, waterless etc; automatic recovery; controlling water height as demand.

2) Easy installation, maintenance-free, safe and reliable.

Application:

These electric pumps series are workable within maximum head, as there are no restrictions of BDC. With the addition of high head, high efficiency and wide high efficiency zone, they are suitable for distance water irrigation, high efficiency of increasing oxygen on aquaculture, pumping water from deep well, gardening, fountain and etc.

Working condition:

1) Non-corrosive water; the volume ratio of sand content no more than 1‰ particle size less than 0.2mm.

2) Max medium temperature up to +40 ; PH value remains 6.5-8.5.

3) Work close to the rated head and must be immersed in water.

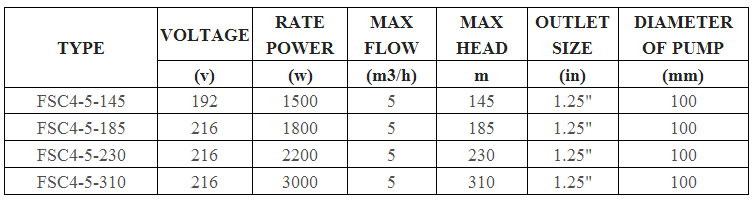

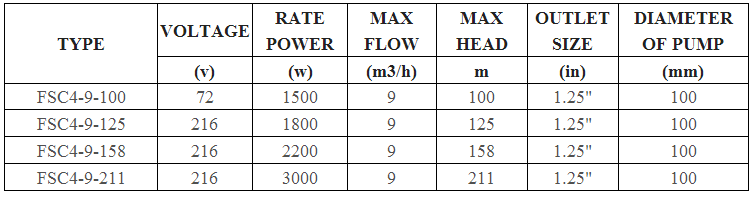

DC SOLAR POWER WATER PUMP

Model

Solar array voltage
   (V)

Solar array  Power
  (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Outer Diameter (MM)



FSC4-5/145-D110/1300

144

2100

5

145

1.25"

100


FSC4-5/185-D110/1500

144

2400

5

185

1.25"

100


FSC4-5.5/230-D216/2200

288

2880

5

230

1.25"

100


FSC4-6/260-D216/3000

288

3600

5

310

1.25"

100


FSC4-9/100-D110/1500

144

1800

9

100

1.25"

100


FSC4-9/125-D110/1800

144

2240

9

125

1.25"

100


FSC4-9/158-D216/2200

288

2880

9

158

1.25"

100


FSC4-9/211-D216/3000

288

3600

9

211

1.25"

100




 DC-AC HYBRID SOLAR POWER WATER PUMP

Model

Solar array voltage
   (V)

Solar array  Power
  (W)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Outer Diameter (MM)



FSC4-5/145-D110/1300AD

144

2100

5

145

1.25"

100


FSC4-5/185-D110/1500AD

144

2400

5

185

1.25"

100


FSC4-5.5/230-D216/2200AD

288

2880

5

230

1.25"

100


FSC4-6/260-D216/3000AD

288

3600

5

310

1.25"

100


FSC4-9/100-D110/1500AD

144

1800

9

100

1.25"

100


FSC4-9/125-D110/1800AD

144

2240

9

125

1.25"

100


FSC4-9/158-D216/2200AD

288

2880

9

158

1.25"

100


FSC4-9/211-D216/3000AD

288

3600

9

211

1.25"

100




Solar pumps are specifically designed to accept DC power directly from the solar modules and are optimized for operating under less-than-ideal sun conditions. Where conventional AC-powered pumps require a stable voltage and frequency to operate, solar pumps can operate over a wide range of voltage and available current.



Conventional AC-powered pumps require large amounts of power to move large volumes of water in a short period of time. Solar pumps typically move a smaller volume of water over an extended period of time. This method requires far less power, which minimizes the size and cost of the PV array.



There are several methods for pumping water in remote areas, such as windmills, gas/diesel pumps, and ram pumps. But most of these options are either too expensive to install, or for fuel and maintenance, or require specific site conditions to operate.



Solar pumps can work for most locations and are at full capacity when needed most: during warm, sunny days. In temperate regions, they can be used year-round—which can be particularly helpful for potable water, animal grazing, and other farming operations. For many sites, a solar pump is often the best.
