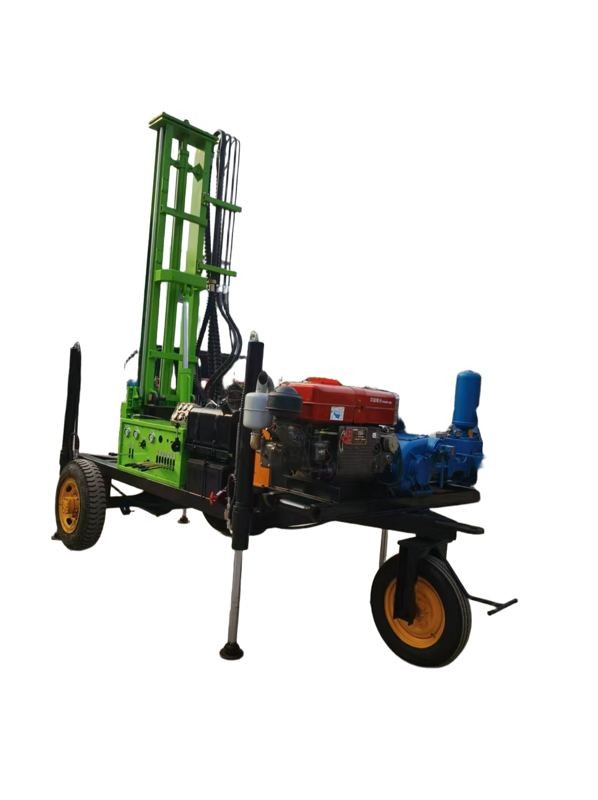

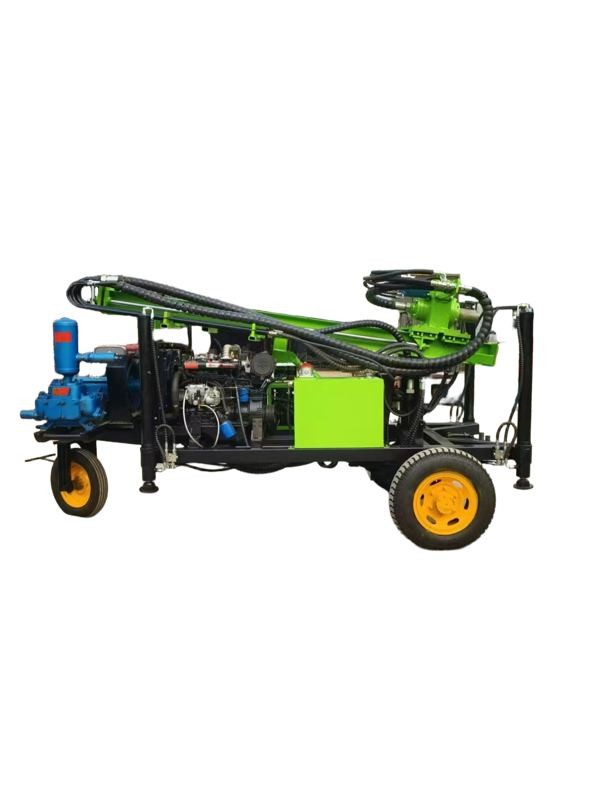

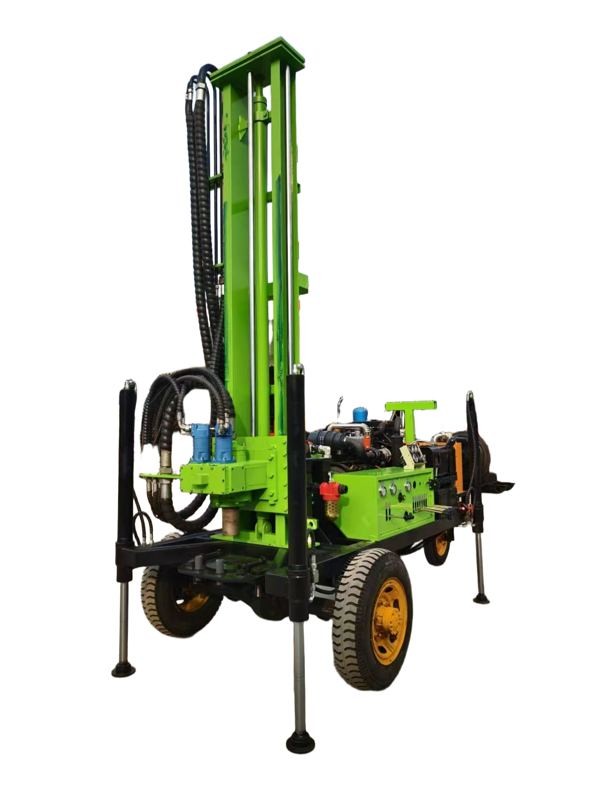

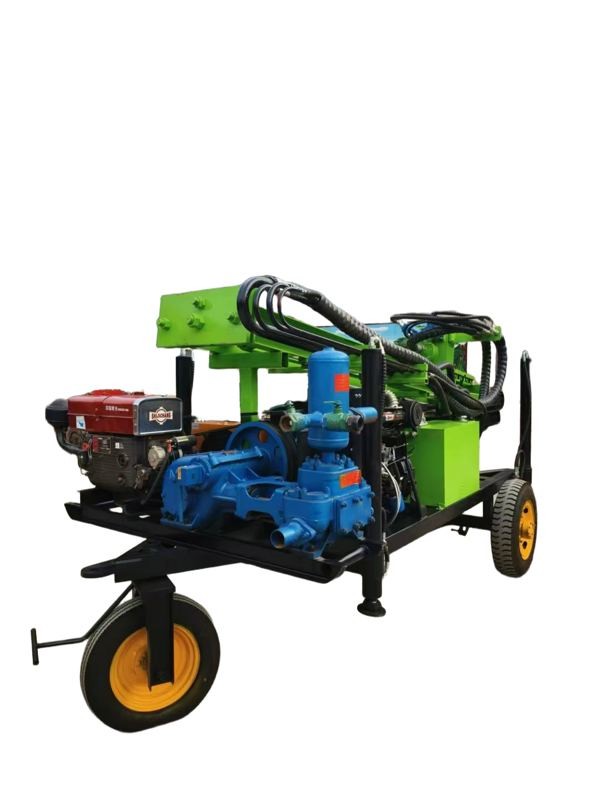

SM150D 钻机

Geology drilled

All kinds

Drill   depth

150   m

Drilling Diameter

90 -300mm

Drill   system and operation

Hydraulic

For rock

6-20F

Air   consumption

17-35m³/min

Air pressure

1.7-3.0Mpa

Rotary   head

Rotation Torque

4000-5000N.m

Rotation   speed

80-200rpm

Lifting capacity

14000KGS

Pull   down capacity

4000KGS

DRILL PIPE

Drill   pipe length

2   meter

Drill pipe diameter

60/76/89 mm

MUD   PUMP

Flow capacity

160 liter/min

working   pressure

1.3MPA

DIMENSIONS

Transport   size

2300*1200*1700mm

Weight

2300KGS

Diesel   engine

Power

45KW
