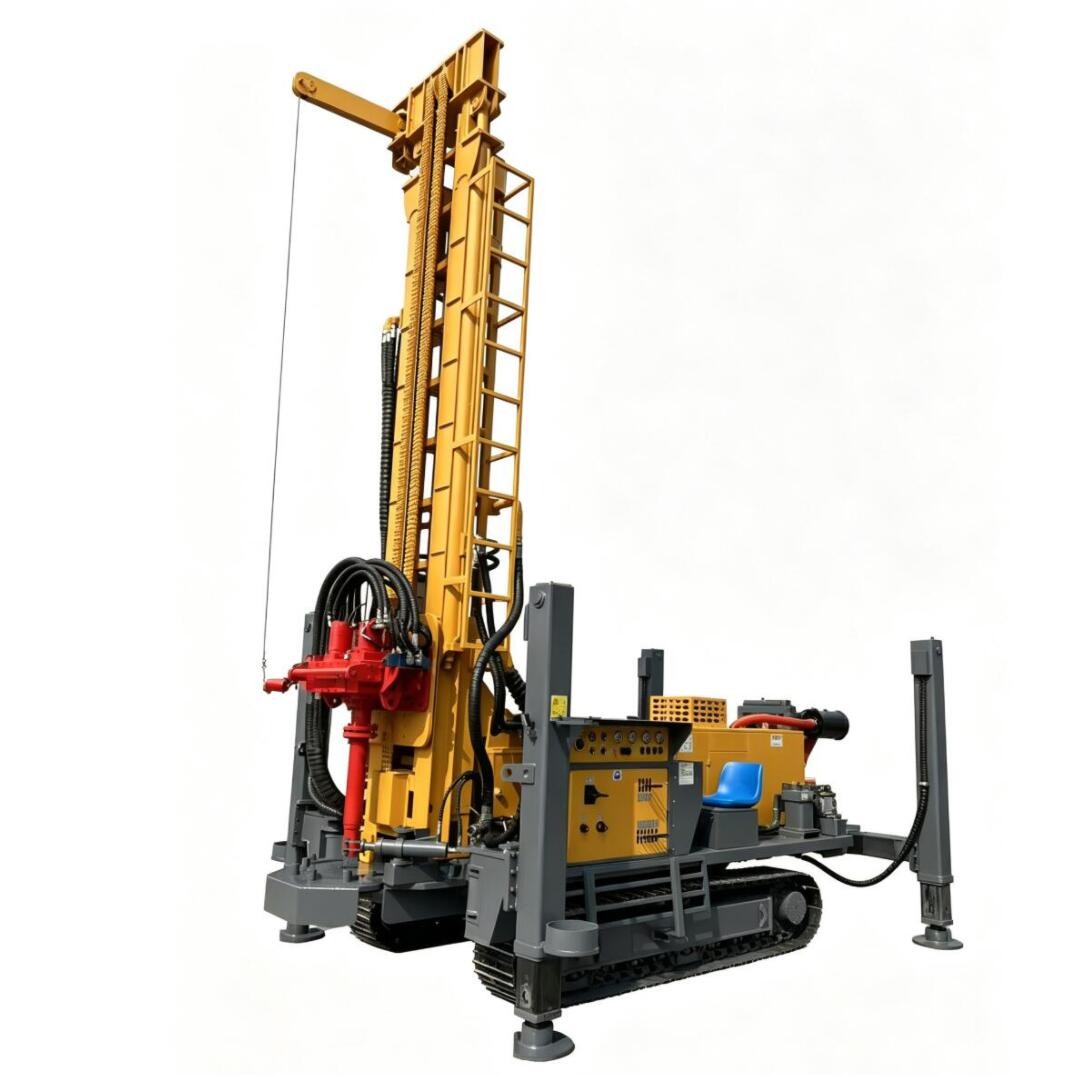

SM400D履带式钻机

Tower

3/6m

Chassis

Steel track

Drilling Diameter

130-325mm

Drilling Depth

400m

One-Time Advancement Length

3.6/6.6m

Walking Speed

2.5km/h

Maximum Gradeability

30

Engine Brand

Yuchai

Engine Power

92/110kw

Working Pressure

1.7-3.5mpa

Air Consumption

17-35 m³/min

Drill Pipe Diameter

102/108/114mm

Drill Pipe Length

3.0/6.0m

Lifting Power

25T

Swing Speed

45-115rpm

Rotating Torque

7000-9000 N.m

Dimensions

5400*2200*2870mm

Weight

7/9T
